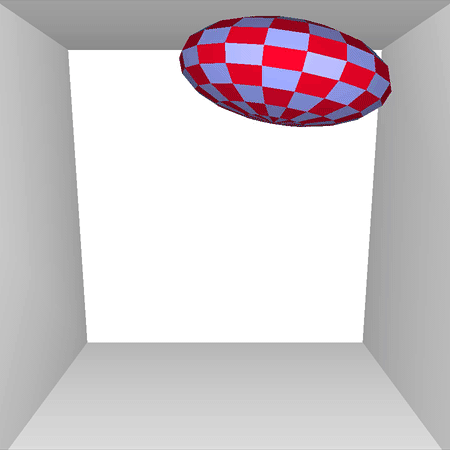

The Commodore Amiga computer had a famous ‘bouncing ball’ demonstration program, a checkered bouncing ball. It was a bit different than this, but this is certainly reminiscent of it.

We love the Amiga demo so much that we created a special checkered ball primitive, AMIGABALL, and a second ‘oid’ primitive, AMIGABALLOID, which is used to create the ‘compressed’ ball.

Rather than turning the turtle into a ball (one method), this method ‘cleans’ the ‘turtle track’ after rendering each frame of the animation (which we wait for using the NEXTFRAME primitive).

The background voxel is actually an ‘inverted’ voxel, a voxel that is created using a negative size value. Due to the nature of OpenGL, only the insides of negative voxels are visible, which is why we can see inside it, and not see the face directly in front of us. Because we clean the ball each frame, we need to use a HATCHLING to create and hold the voxel in place. The hatchling just sleeps while the program runs.

The CAM: prefix directs the current view turtle (usually ‘Snappy’) to do things. You could also use SNAPPY: in this case but CAM: is shorter.

DOUNTIL PENCOLOR != FILLCOLOR [RANDFC] ensures that the ball has two different colors. The Amigaball(oid) uses both the pen and the fill colors in its construction, the only 3D primitive to do so.

To stop the ball from bouncing, press the Escape key.
